General

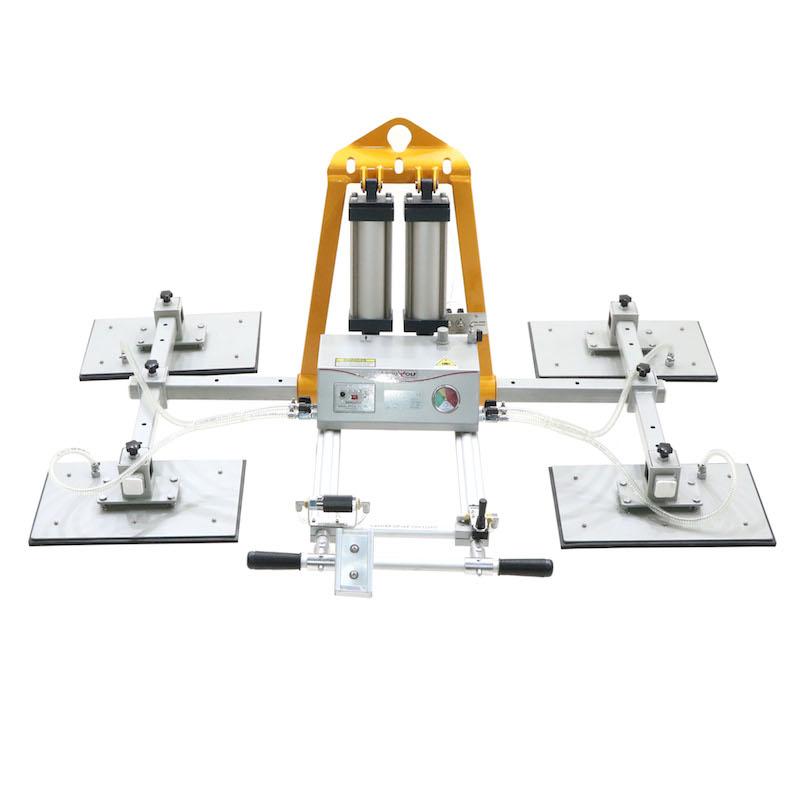

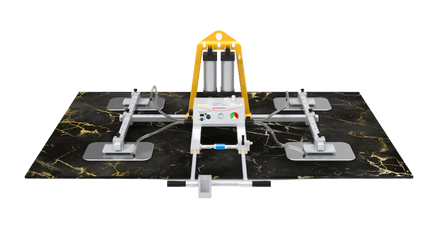

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the added ability to lift and tilt the stone. Powered by compressed air.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.
- Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
- Acoustic and visual alarm system powered by a rechargeable battery.
- Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads.
Specifications:
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Number of pad | 4 | - |
| Pad size | 520x320 | 20.5"x12.6" |
| Working load limit | Vertical: 500 Horizontal:1000 |
1102 2204 |
| Net weight | 109 | 240 |
| Gross weight | 150 | 331 |
| Packaging dimensions | 1680x430x960 | 66.1"x16.9"x37.8" |
- Battery information for the device
| Battery code | GBA 12V 2.0Ah Bosch |
| Battery type | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuos operation time with mode saving pressure | 2 hours |
| Working time with mode saving pressure | 6 hours |
| Continuos operation time with mode audio alarm only | 120 hours |
| Working time with mode audio alarm only | 360 hours |
- Battery charger
| Battery code | GAL 12V-40 Bosch |
| Input supply voltage | 220-240VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charger time | 0.5 hour |
| Weight | 460 gram |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
